Automatic Powder Coating System Manufacturer for Robotic Painting Process

Applicable Products and Industrial Scope

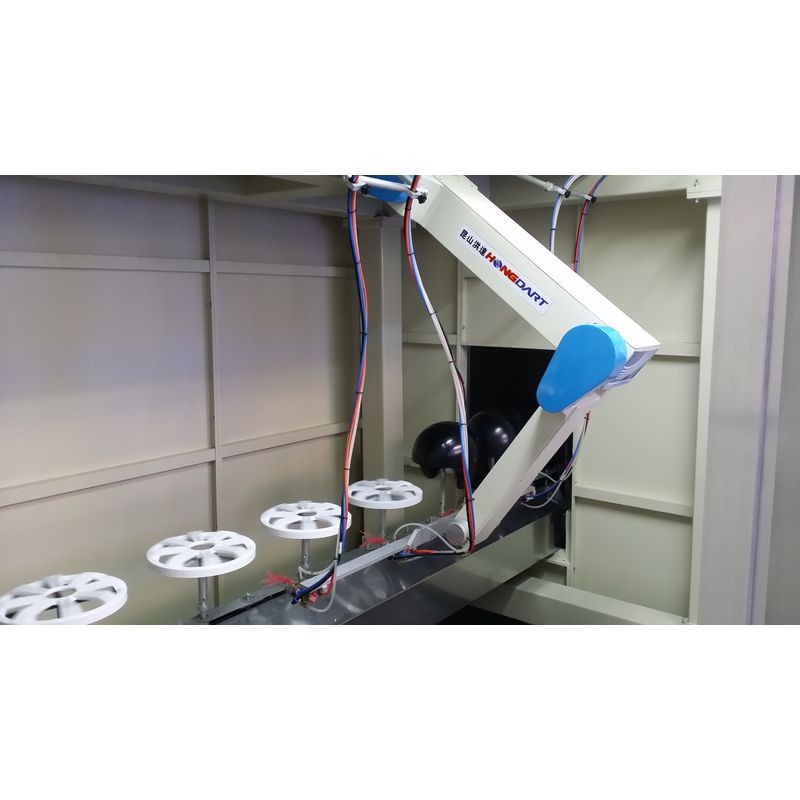

The articulated robotic automatic tracking spray coating line is suitable for products with complex geometries or high coating consistency requirements. Through programmed control, it enables stable and high-volume production. This type of system is commonly integrated into an automatic powder coating system for industrial manufacturing environments.

Common Application Scope

• Multi-curved or irregular 3D workpiece coating
• Industrial equipment housings and metal structural parts
• Automotive and motorcycle components surface coating
• Home appliance exterior finishing

Advantages of HD-650R-4G Spray Coating Line

• Multi-axis Sync Tracking: Through the encoder, the robot and workpiece can perform synchronized spray tracking.
• Full-digital control: Robot joints move smoothly and precisely.
• Windows-based system: Easy to learn and operate.
• Graphical interface: No barrier for programming system setup.
• Easy program editing in teaching mode; parameters can be input directly or set via manual pulse generator.
• Hard-disk storage: Supports over 10,000 programs for convenient file management and classification.
• Suitable for coating complex product curves. Customization, ODM, and intelligent identification support mass production or mixed-model production. It helps solve manual spraying inconsistency, improves yield rate, and reduces paint consumption.

Limitations of Traditional Spray Coating

Common Production Issues

• Difficult to achieve uniform coverage on complex surfaces
• Coating quality depends heavily on operator skill
• Product changeover requires process readjustment
• Unstable material utilization efficiency

Core Technology of Robotic Spray Coating Systems

Multi-axis Motion and Trajectory Control

• Multi-degree-of-freedom motion for complex workpieces
• Custom spray paths can be created for each product
• Improved coating coverage completeness

Automatic Tracking and Path Adjustment

• Automatic correction of spray positioning
• Maintains fixed distance and angle
• Reduces quality variation caused by shape differences

Customized Configuration Flexibility

System layout can be adjusted according to factory space, workpiece size, production process, and capacity requirements, including production line layout, spray booth size, and curing oven configuration for an automatic powder coating system.

FAQ

Do you provide full production line planning?

Yes, we can provide complete automatic coating system design and integration planning based on customer requirements.

How is production capacity evaluated?

Evaluation is based on workpiece size, coating time, and overall production line configuration.
