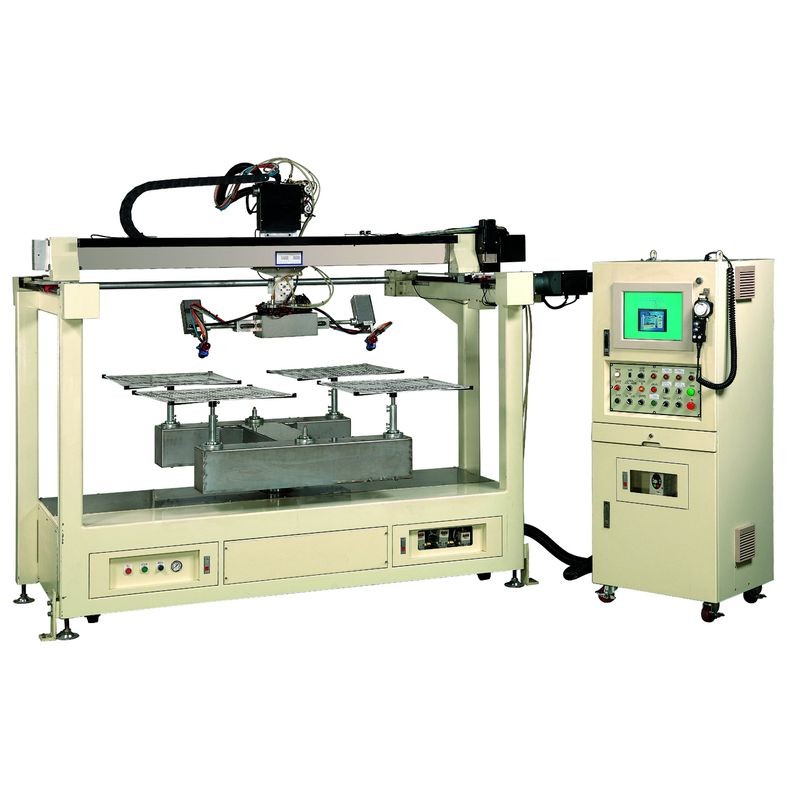

Full-Digital Computerized Automatic Painting Machine (Dual-Station)
Full-Digital Computerized Automatic Painting Machine (Dual-Station)
Type：HD-380-8S-PC
Machine Dimensions: L1768 x W2780 x H2200 mm
Adjustable Stroke: X-axis: single gun 1800 mm / dual gun 880 mm
Y-axis: 930 mm
Z-axis: 350 mm
Spray Gun Angle: Left/Right 120°; Rotation 180°
Tray Size / Qty: Max. 600 x 600 mm, 4 pcs
Rotation Platform: 180° indexing rotation, 1 set
Self-Rotation Platform: 2 sets, programmable forward/reverse rotation at any angle
Spray Gun (optional per request): DEVILBISS LVMP mid-pressure high atomization spray gun (reference)
Auto Control (spray volume / spray pattern / air pressure): 3 proportional valves
Control Axes: 8-axis system
Controller System:
Intel industrial PC (15” touch screen), 1 unit
UTC controller, 1 unit
Adjustable Stroke: X-axis: single gun 1800 mm / dual gun 880 mm
Y-axis: 930 mm
Z-axis: 350 mm
Spray Gun Angle: Left/Right 120°; Rotation 180°
Tray Size / Qty: Max. 600 x 600 mm, 4 pcs
Rotation Platform: 180° indexing rotation, 1 set
Self-Rotation Platform: 2 sets, programmable forward/reverse rotation at any angle
Spray Gun (optional per request): DEVILBISS LVMP mid-pressure high atomization spray gun (reference)
Auto Control (spray volume / spray pattern / air pressure): 3 proportional valves
Control Axes: 8-axis system
Controller System:
Intel industrial PC (15” touch screen), 1 unit
UTC controller, 1 unit
Detail
Suitable Products
Application Overview
- This is a full-function automatic spray coating machine with fully digital computer control and a user-friendly graphical interface.
- It supports arc spraying, curved surface coating, flat surface spraying, and other complex coating paths with high precision requirements. Designed for consistent high-quality finishing, it covers a wide range of applications, including:
- Speaker housings, laptops, PDAs, game consoles, LCD monitors, automotive parts, mobile phones, toys, cosmetic products, metal parts, hardware components, and various types of enclosures.
Customization Scope
Custom Adjustment Options
- For products with different sizes and depths, the machine can be customized in stroke design and fixture setup to match specific production needs.
Product Advantages
System & Functions
- Full-digital computerized control with windows system.
- The Pure Birth of eight-axes auto painting machine, have eight drivers and nine motors, full-bearing auto painting function.
- Moving eight-axes at the same time and mend point with six-axes, various kinds of high difficult painting proceed.
- The digital auto spray-painting, operate of painting smoothly, proceeding to professional painting of high speed.
- Memory infinity the argument data.(depends on HD capacity)
- Build database by products, finite administering spraypainting argument data, also can proceed copy administering.
- The painting range, volume and volume of deliver paint of the digital automatic control, can control accurately the quality of spray-painting
- Operation of figured editor and manual teaching box (Same of ROBOT manipulator), programming easy.
- Multi-painting methods, include four directions (rotate 90), two directions (rotate 180) or rotate-painting (rotate 360).
- Changable to meet workpiece, double plates painting (normal workpiece) or refit as single plate painting (large workpiece).
- The machine could paint different programs of products simultaneously.
Equipment Running Video
