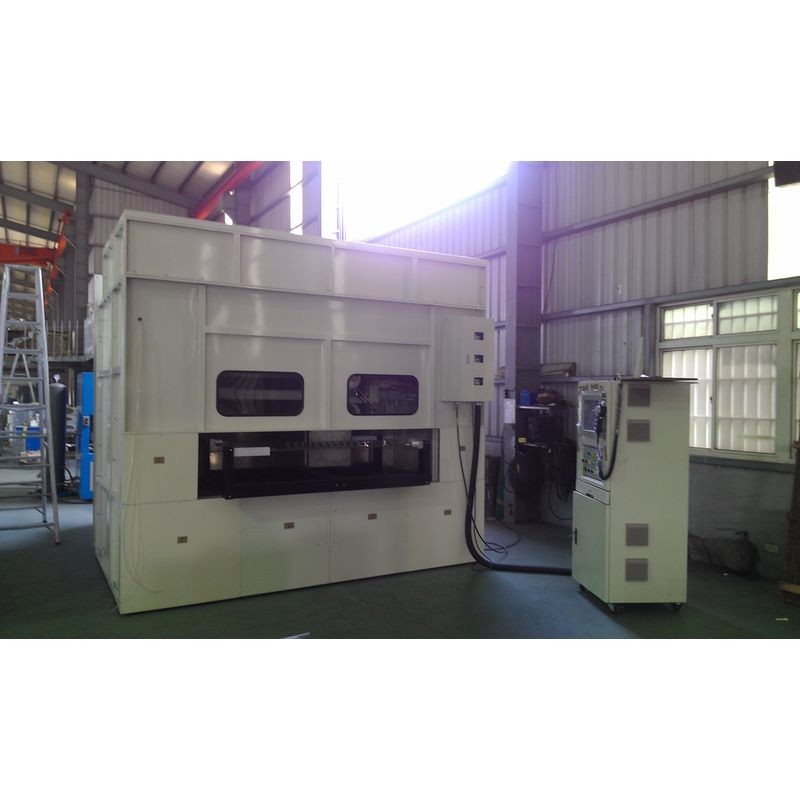

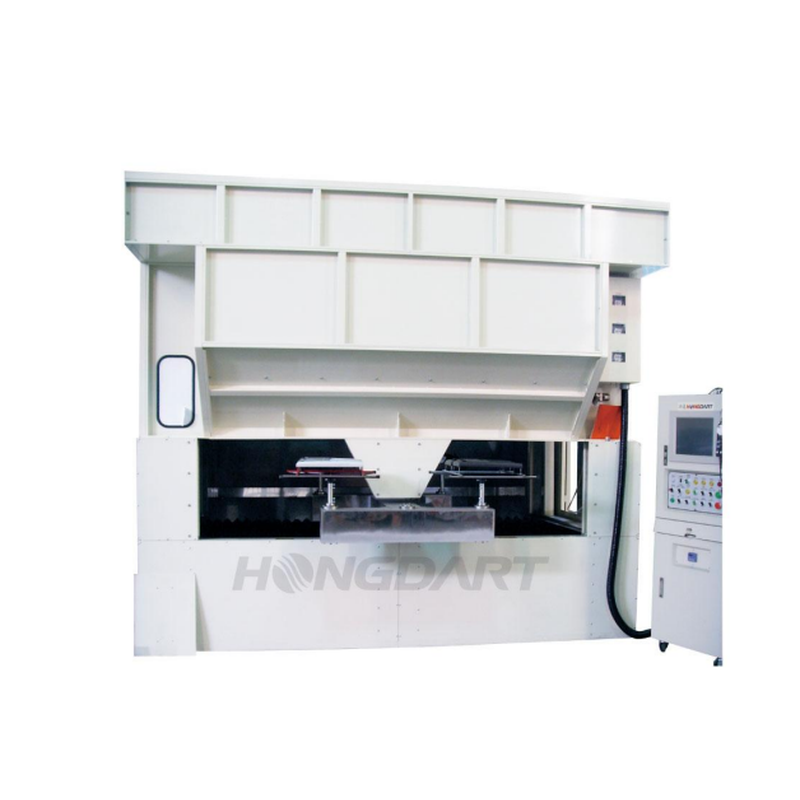

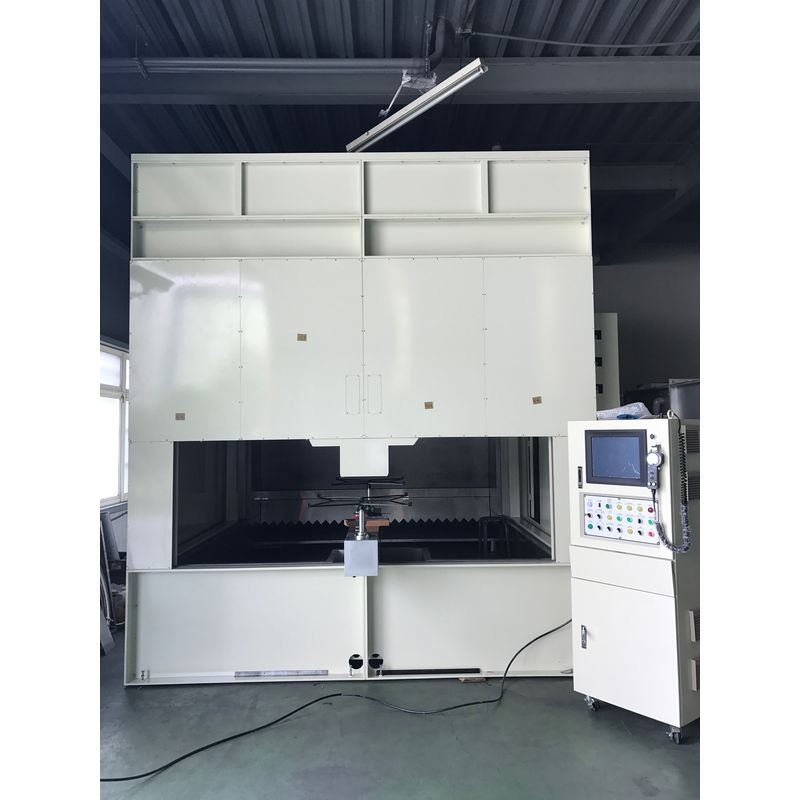

Full-Digital Computerized Automatic Painting Machine with Painting Room
Full-Digital Computerized Automatic Painting Machine with Painting Room
Type：HD-480
Machine Dimensions: L3190 x W3600 x H3150 mm
Adjustable Stroke:
X-axis: single gun 1800 mm / dual gun 880 mm
Y-axis: 930 mm
Z-axis: 350 mm
Spray Gun Angle: Left/Right 120°; Rotation 180°
Auto Control (spray volume / spray pattern / air pressure): 3 proportional valves
Adjustable Stroke:
X-axis: single gun 1800 mm / dual gun 880 mm
Y-axis: 930 mm
Z-axis: 350 mm
Spray Gun Angle: Left/Right 120°; Rotation 180°
Auto Control (spray volume / spray pattern / air pressure): 3 proportional valves
Detail
Suitable Products
Application Overview
- This is a full-function automatic spray coating machine with fully digital computer control and a user-friendly graphical interface. It supports arc spraying, curved surface coating, flat surface spraying, and other high-difficulty coating paths. Designed for high-quality finishing requirements, it is suitable for a wide range of products such as speaker housings, laptops, PDAs, game consoles, LCD monitors, automotive parts, mobile phones, toys, cosmetic products, metal parts, hardware components, and various enclosure coating applications.
Customization Scope
Custom Adjustment Options
- For products with different sizes and depths, stroke design and fixtures can be customized to meet specific production requirements.
Product Advantages
System & Functions
- Fully digital computer control system (Windows-based interface).
- True 5-axis automatic spray coating machine with 5 independent drives and 5 motors for full-range coating capability.
- Supports 5-axis synchronized motion and 4-axis compensation for complex and high-difficulty spray applications.
- Digital automated spraying with smooth operation, suitable for high-precision curved surface coating.
- Unlimited storage of spray parameters (depending on hard disk capacity).
- Product-based database system for managing spray parameters with backup functions.
- Digital control of spray width, spray volume, and paint flow for precise coating quality control.
- Graphical programming with manual teach pendant operation (similar to robotic systems), easy program setup.
- Enclosed spray area during operation reduces impact on the working environment and operators.
- Integrated spray booth and machine design saves floor space and improves operational convenience.
