Full-Digital Computerized Automatic Painting Machine (Single-Station)
Full-Digital Computerized Automatic Painting Machine (Single-Station)

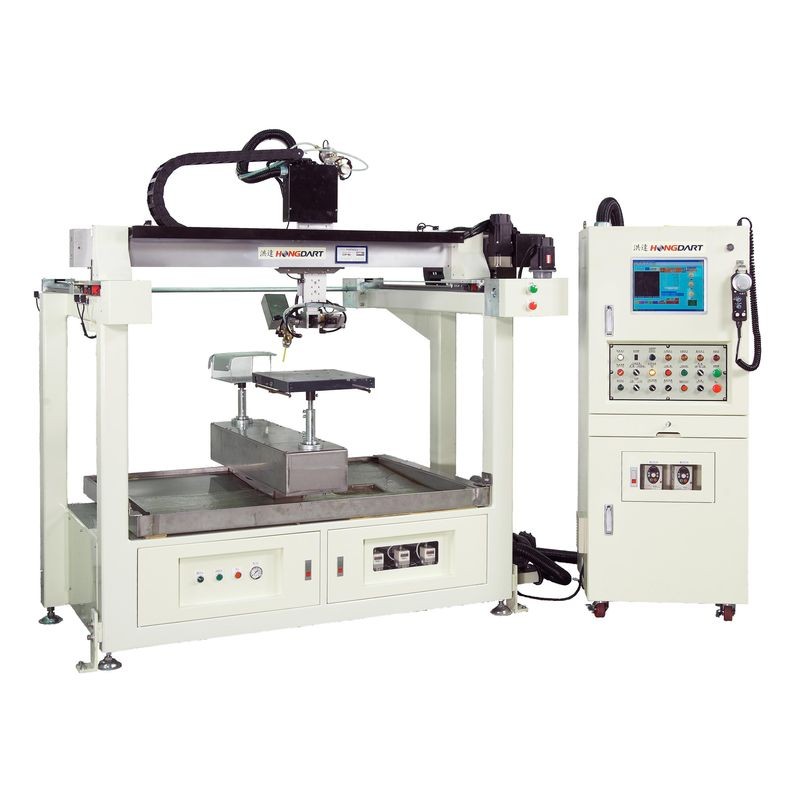

Type：HD-380-5S-PC
Machine Dimensions: L2020 x W1700 x H2250 mm (custom sizes available based on workpiece)
Adjustable Stroke: X-axis 1050 mm, Y-axis 860 mm, Z-axis 450 mm
Spray Gun Angle: Left/Right 150°; Rotation 180°
Tray Size / Qty: Max. 650 x 650 mm (customizable), 2 pcs
Rotation Platform: Rotating feeding system, 1 set
Drive Motors: 5 sets (with drivers)
Self-Rotation Platform: 1 set (90° per rotation)
Spray Gun (optional per request): DEVILBISS LVMP mid-pressure high atomization spray gun (reference)
Auto Control (spray volume / spray pattern / air pressure): 3 proportional valves
Control Axes: 5-axis system
Controller System:
Intel industrial PC (15” touch screen), 1 unit
UTC controller, 1 unit
Adjustable Stroke: X-axis 1050 mm, Y-axis 860 mm, Z-axis 450 mm
Spray Gun Angle: Left/Right 150°; Rotation 180°
Tray Size / Qty: Max. 650 x 650 mm (customizable), 2 pcs
Rotation Platform: Rotating feeding system, 1 set
Drive Motors: 5 sets (with drivers)
Self-Rotation Platform: 1 set (90° per rotation)
Spray Gun (optional per request): DEVILBISS LVMP mid-pressure high atomization spray gun (reference)
Auto Control (spray volume / spray pattern / air pressure): 3 proportional valves
Control Axes: 5-axis system
Controller System:
Intel industrial PC (15” touch screen), 1 unit
UTC controller, 1 unit
Detail
Suitable Products
Application Overview
- This machine is a fully functional automatic spray coating system with a fully digital computer control interface and user-friendly graphical display.
- It supports arc spraying, curved surface coating, flat surface spraying, and other complex coating paths with high precision requirements. Designed for high-quality finishing processes, it is suitable for a wide range of products, including:
- Speaker enclosures, notebooks, PDAs, game consoles, LCD monitors, automotive parts, mobile phones, toys, cosmetic packaging, metal parts, and hardware components, as well as various types of housing and enclosures requiring spray finishing.
Product Advantages
System & Functions
- Full-digital computerized control with windows system.
- The Pure Birth of Five-axes auto painting machine, have five drivers and motors, full-bearing auto painting function.
- Moving five-axes at the same time and mend point with four-axes, kinds of high difficult painting proceed.
- The digital auto spray-painting, operate of painting smoothly, proceeding to professional painting of high speed.
- Memory infinity the argument data.(depends on HD capacity)
- Build database by products, finite administering spraypainting argument data, also can proceed copy administering.
- The painting range, volume and volume of deliver paint of the digital automatic control, can control accurately the quality of spray-painting.
- Operation of figured editor and manual teaching box (Same of ROBOT manipulator), programming easy.
