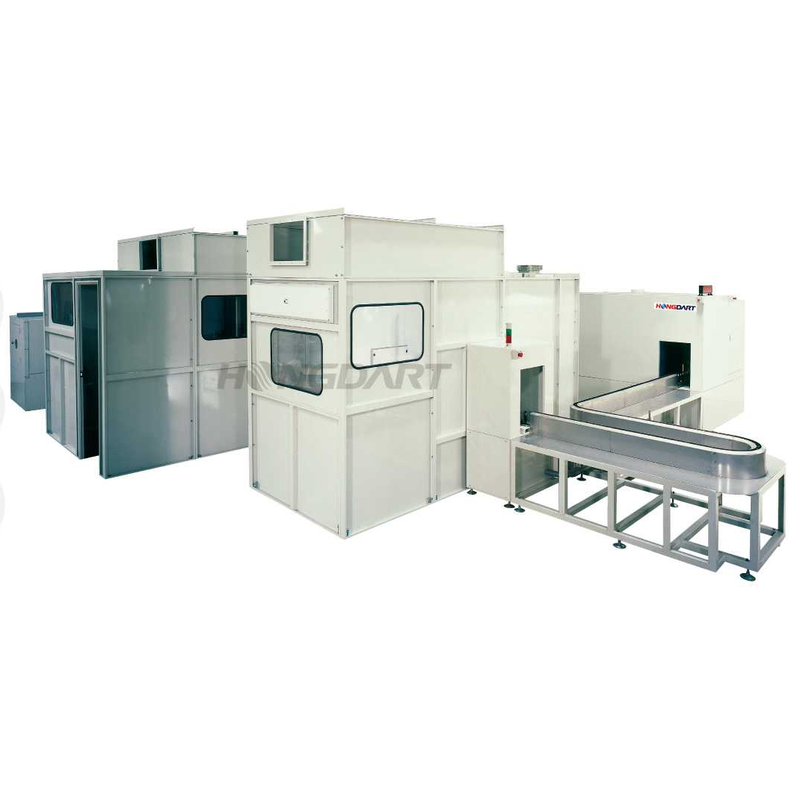

Auto Spray-Painting Line with Oven

Production Workflow

• Loading / Unloading area
• Electrostatic dust removal chamber (4 fixed electrostatic guns)
• Coating chamber (6 spray gun fixtures)
• Leveling & heating chamber
• Coating chamber (dual-gun system, 5 fixtures)
• Leveling & heating chamber
• UV curing chamber
• Power unit (3HP, 1/200r)

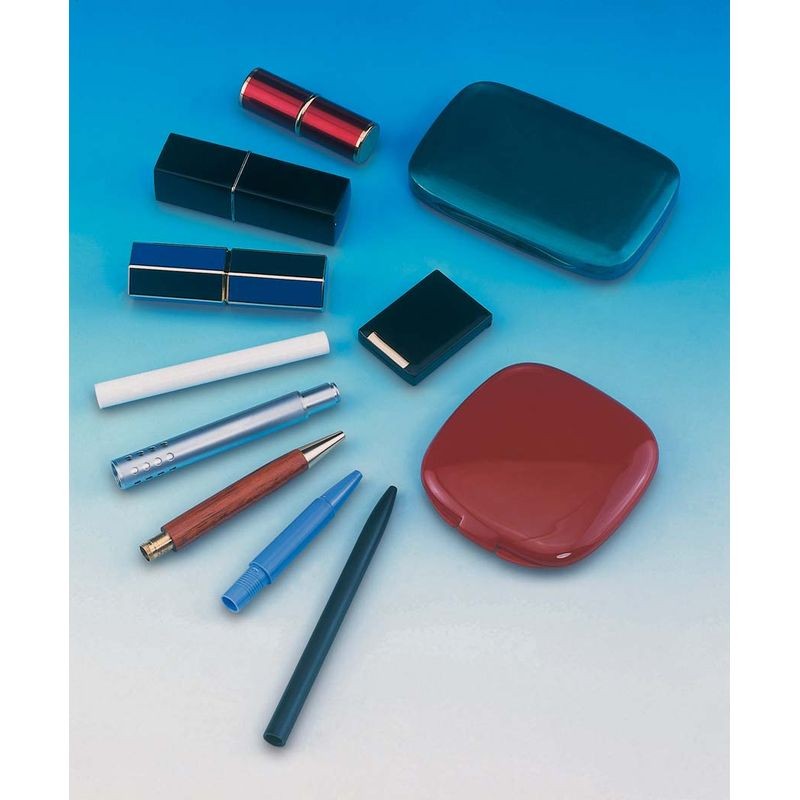

Suitable Products

Application Scope

• This system is suitable for spray coating on mobile phone housings, PDAs, digital cameras, cosmetic cases, and other enclosure-type products.

Customization Scope

Custom Adjustment Options

• Production line layout, spray booth size, oven dimensions, and process flow can be adjusted according to factory space, product size, production process, and capacity requirements.

Product Advantages

Production Line Integration

• From loading, spraying, curing to unloading, all processes are completed on a single production line, ensuring a streamlined workflow that reduces material waste and labor cost while improving yield rate and reducing overall operating cost.

Quality & Efficiency

• Fully automated spraying ensures stable quality and smooth operation. High-speed coating performance reduces human error and improves consistency in production quality.
