Automatic Powder Coating Equipment Manufacturer for Complex Workpieces

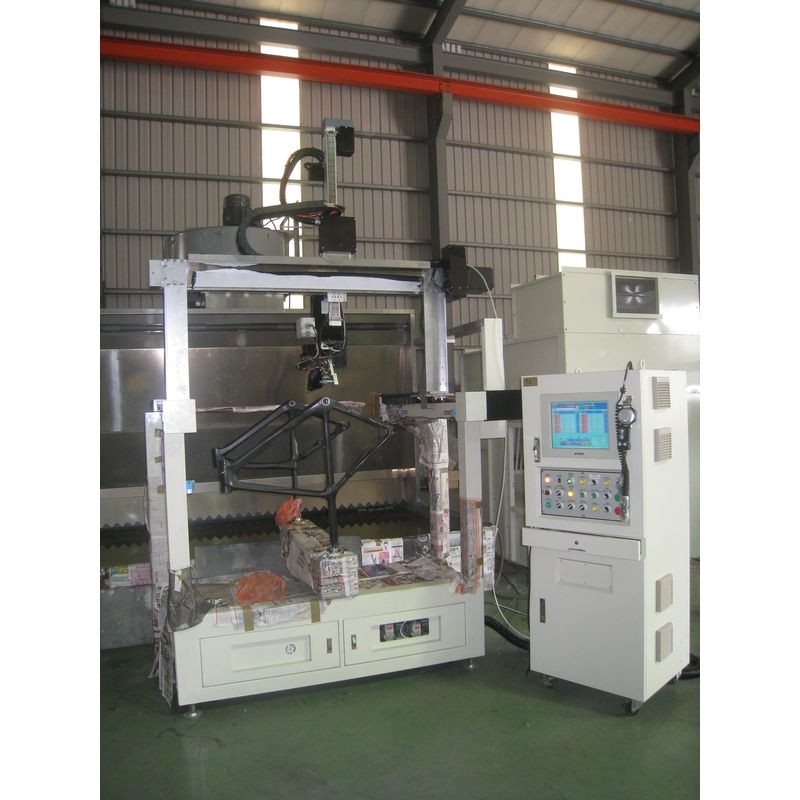

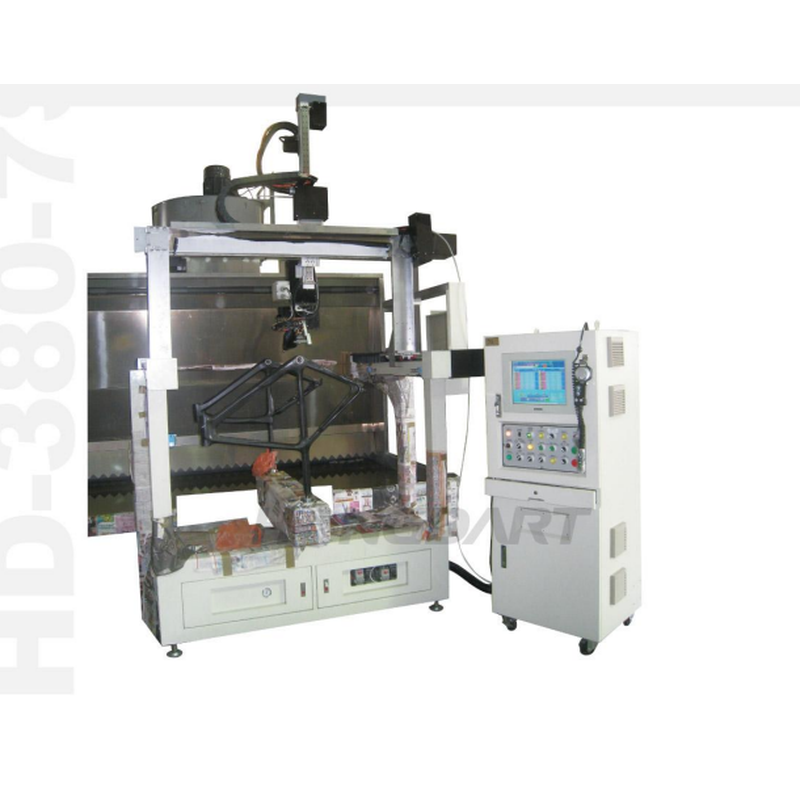

Automatic Painting Machine for Bike Frame
Type：HD-380-7S-BMotor with drive: 8 sets
Rotary platform: 180° per cycle
Automatic control: spray volume / spray pattern / air pressure
Rotary axis: adjustable angle, clockwise and counterclockwise rotation
Includes 1 imported automatic liquid electrostatic spray gun
Control axes: 7 axes
Adjustable stroke: X-1300 mm / Y-1000 mm / Z-1000 mm
Spray gun left-right angle: 180°
Spray gun rotation angle: 180°
Detail
Applicable Products and Common Manufacturing Applications
The HD-380-7S-B coating spray machine is mainly used for bicycle frame surface coating and various housing surface finishing applications. It is especially suitable for multi-tube structures and complex geometric designs. This type of system is often integrated into automatic powder coating equipment production lines to improve efficiency and consistency.
Common Application Products
- Road bike frames and mountain bike frame coating
- Aluminum alloy frame surface treatment
- Steel frame exterior coating
Common Problems and Improvement Methods in Frame Coating
Typical Production Line Issues
- Tube intersections causing incomplete coating coverage
- Uneven coating thickness at welding areas
- Color change affecting production cycle timing
- Inconsistent manual operation stability
Improvements After Automation Implementation
Advantages of HD-380-7S-B Coating Spray Machine
- Full digital computer control system (Windows-based interface)
- Five-axis synchronous operation design with five independent drive motors
- Supports five-axis motion and four-axis auxiliary spraying for complex angles
- Continuous and stable spraying performance, suitable for curved and 3D structures
- Multiple coating parameter storage (depending on hard disk capacity)
- Product coating database creation and classification management
- Adjustable spray width, spray volume, and paint flow control
- Graphical programming and manual teaching mode for easy operation setup
HONGDART, as a professional powder coating equipment manufacturer, provides reliable machine design and production line planning for industrial coating applications.
Core Design Features of the Coating Spray Machine
Frame Structure-Oriented Design Configuration
- Multi-axis motion path design for improved coating coverage
- Bicycle frame rotation mechanism to reduce blind spots
- Adjustable spray gun angles for different geometric shapes
Production Line Integration Capability of Spray Machines
Compatible Production Line Equipment
- Automatic conveyor systems
- Drying equipment or curing ovens
- Automatic loading and unloading systems
Project Consultation
If you are evaluating a bicycle frame coating machine or planning production line automation, feel free to share your product specifications and requirements for discussion.
👉 HONGDART, a professional coating machine manufacturer, supports customized automatic powder coating equipment planning and production line integration services.
Please contact us via 【Product Inquiry】 or 【Contact Us】 for quotation and further discussion.
